CM400 Pile Mount Tower with 6 ft Crossarm

Overview

The CM400 is an ideal mount to secure a SunSentry Solar Operational Meteorological Monitoring Station to a driven pile. The included 15.24 cm (6.0 in.) hook bolts accommodate an I-beam style pile with flange dimensions 7.6 to 12.7 cm (3 to 5 in.), such as a W6x12. Installation details, including the recommended pile exposure height and orientation, are found in the SunSentry Installation Guide.

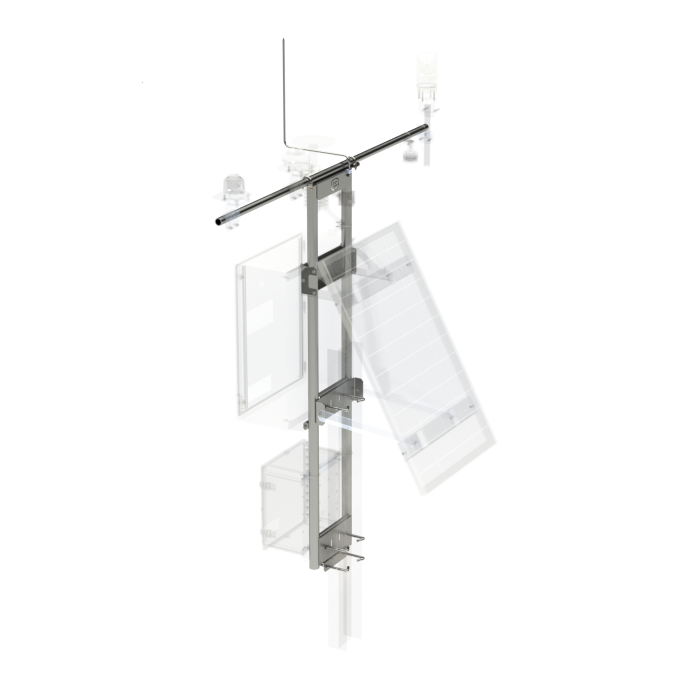

Note: In the images, the darkened components are included with the CM400.

Images

Specifications

-NOTE- The wind area is calculated using a fully loaded SunSentry Solar Operational Meteorological Monitoring Station mounted to the CM400.
Maximum Wind Rating 209.21 kph (130 mph)
Material
  • Aluminum (structure)
  • Galvanized steel, stainless steel (hardware)
Top Crossarm 1 in. NPS aluminum pipe (1.315 in. OD)
Vertical Masts 1.5 in. NPS aluminum pipe (1.9 in. OD)
Width
  • 1.8 m (6 ft) assembled
  • 0.4 m (1.4 ft) shipped
Height
  • 2.5 m (8.2 ft) with lightning rod
  • 1.9 m (6.2 ft) shipped
Depth 0.13 m (0.42 ft) shipped
Weight 10.8 kg (23.9 lb)
